🔌 D2 2-Pin Quick Wire Connectors | No Stripping or Soldering
D2 QUICK WIRE CONNECTORS
Connect Two Wires Without Stripping or Soldering
A compact, snap-together connector for tidy two-conductor wiring. Insert the insulated wires, press the clear cap, and join two matching D2 ends.
✓ No wire stripping ✓ No soldering ✓ Two-wire connection
A Cleaner Way to Join Your Wires
Working on an LED strip, cabinet light, or small wiring project? The D2 connector lets you terminate two insulated conductors without first stripping their ends or reaching for a soldering iron.

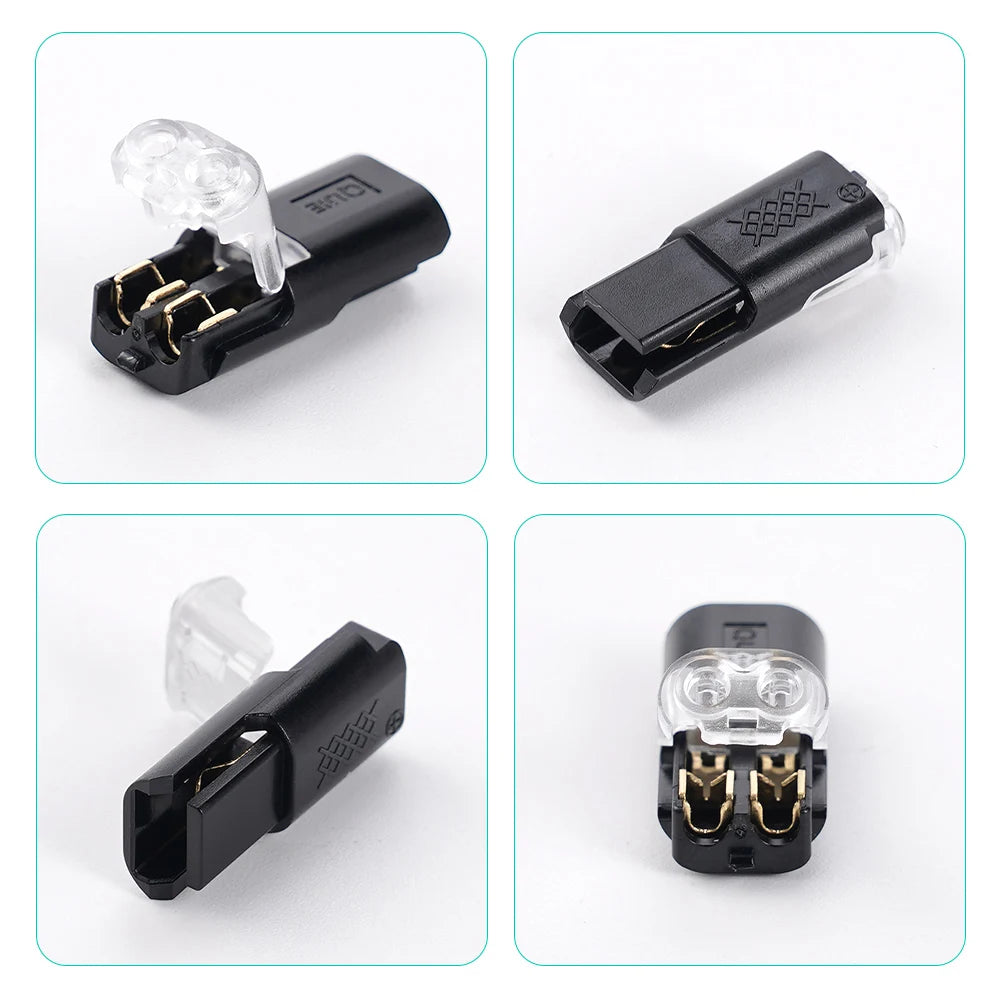

The transparent cap shows where the wires enter, while the compact black housing helps keep the connection neat in tighter spaces.

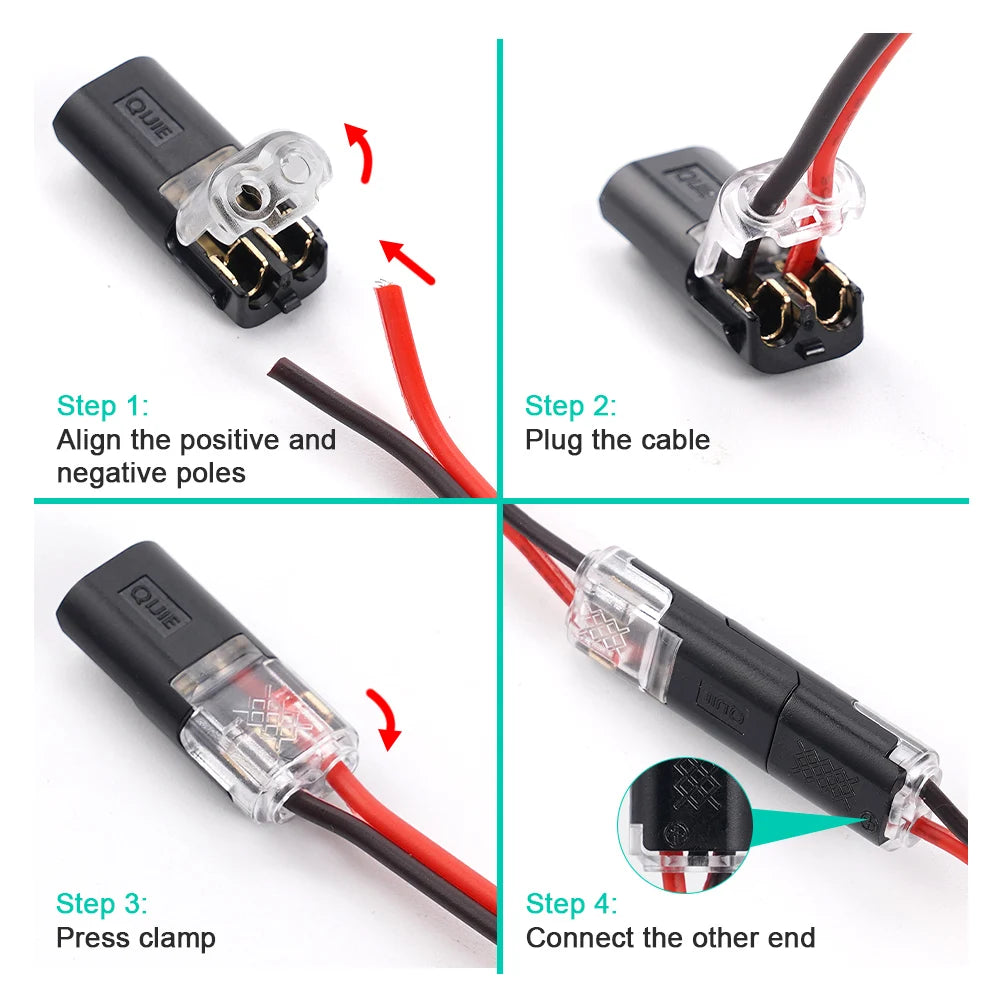

Connect in Four Simple Steps
Keep the two conductors in the correct positions on both ends, then secure and join the connectors.
1. Match the positive and negative wire positions.
2. Place each insulated wire in its channel.
3. Press the transparent cap fully closed; use suitable pliers if needed.
4. Wire a second D2 connector the same way, then snap the two ends together.
Made for Small Two-Wire Projects
Useful for compatible LED strip lighting, cabinet lighting, display lights, and other two-conductor wiring where a compact connector makes assembly and later separation easier.
Check Your Wire Fit
Confirm both the conductor size and the outside diameter of its insulation before installing.

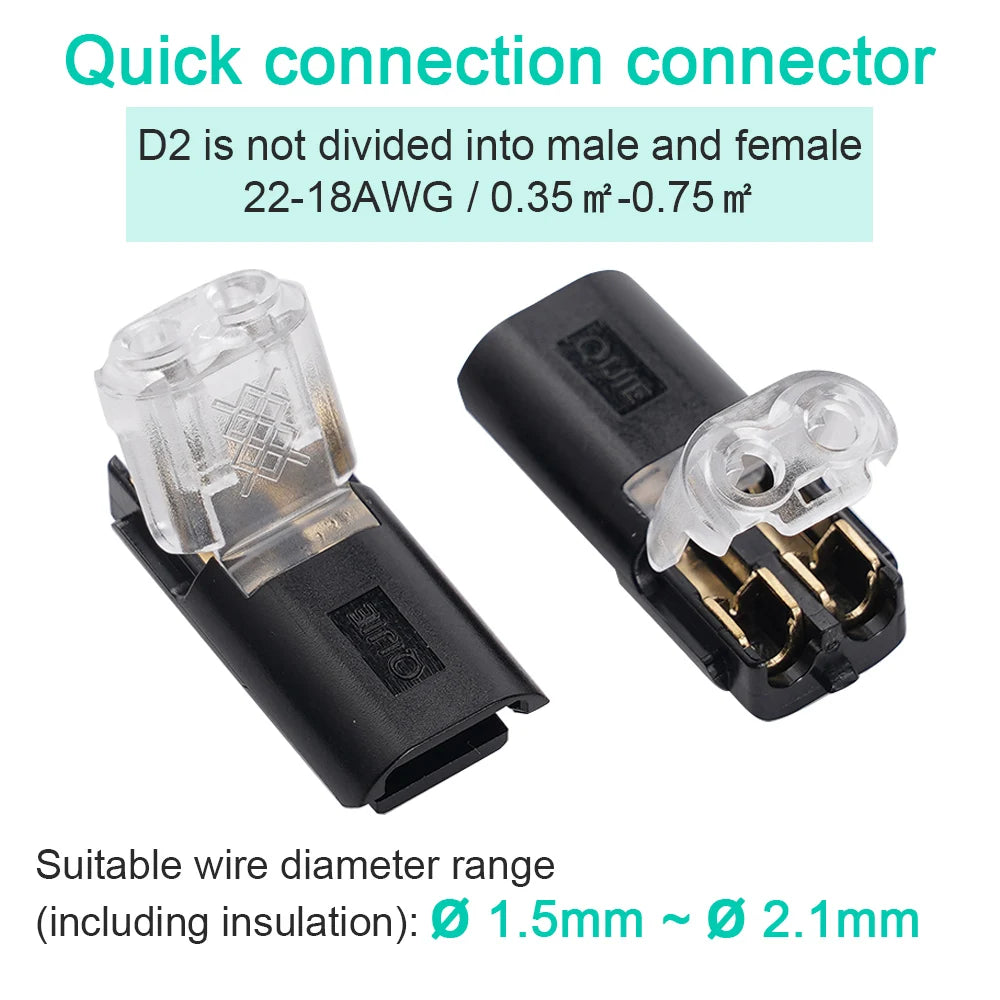

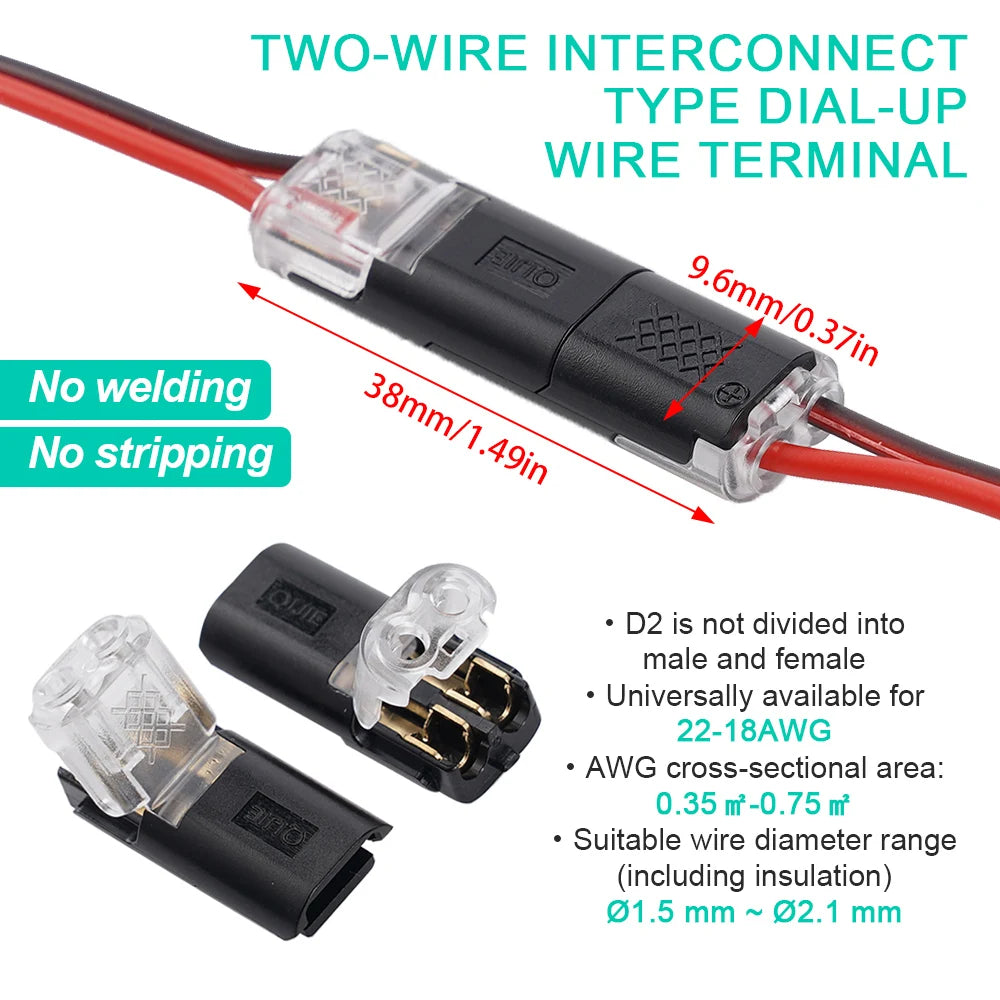

| Connector type | D2, two-conductor, snap-together |
|---|---|
| Wire size | 18–22 AWG / 0.35–0.75 mm² |
| Insulated wire diameter | 1.5–2.1 mm |
| Body / contact | Polycarbonate / copper |
| Color | Black with a transparent cap |
Frequently Asked Questions
Do I need to strip or solder the wires?
No. This D2 design secures compatible insulated wires when you press the clear cap into place.
Can I separate the connection later?
The two mated D2 connector ends can be unplugged. Check the wire termination before reusing any individual connector.
Will it work with my wires?
Check for 18–22 AWG conductors (0.35–0.75 mm²) with 1.5–2.1 mm outside insulation diameter. Also confirm that the connector's electrical rating suits your circuit.
